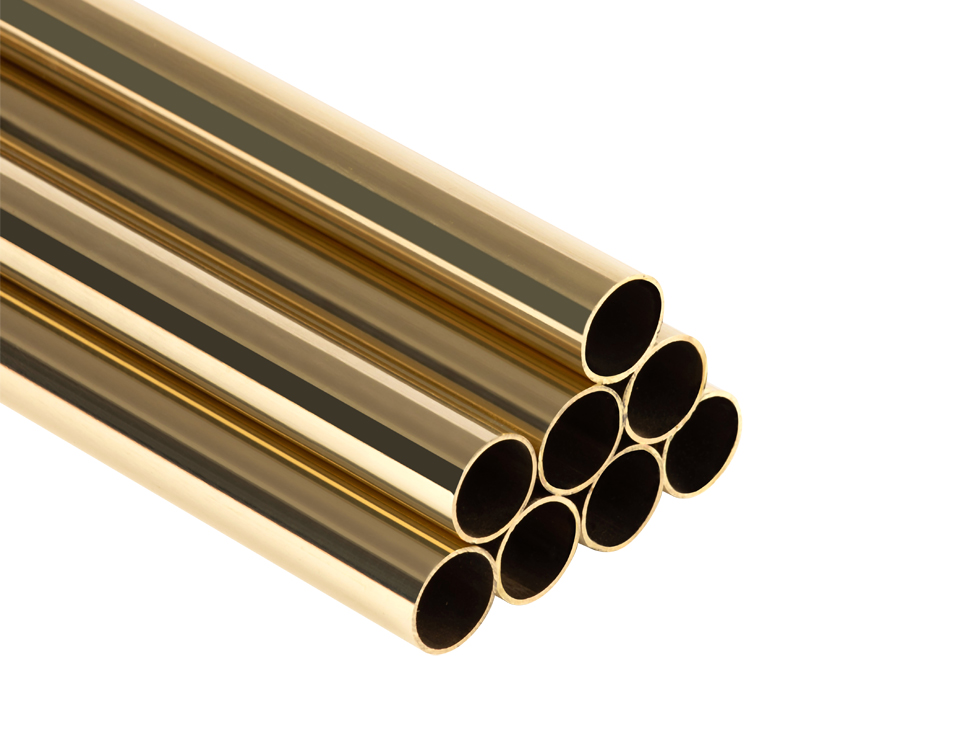

Brass Tube
Production
TECHNICAL SPECIFICATIONS:Made of Copper and Zinc alloy. Manufactured according to Cuzn39Pb3 and CuZn37 standards.
AREAS OF APPLICATION:
Machine components, connecting clips, showcase accessories, lighting industry, decoration etc...
-
TECHNICAL DETAILS
-
DIMENSIONS OF BRASS PIPE OUTSIDE DIAMETER THICKNESS UNIT WEIGHT TYPE MIN MAX MIN MAX LENGTH mm mm mm kg/m kg/m m 4 0,5 1 0,047 2,0 - 6,0 5 0,5 1 0,061 0,108 2,0 - 6,0 6 0,5 1,5 0,074 0,182 2,0 - 6,0 7 1 1,5 0,162 0,223 2,0 - 6,0 8 0,5 1,5 0,101 0,263 2,0 - 6,0 9 0,5 1,5 0,115 0,304 2,0 - 6,0 10 0,5 2 0,128 0,432 2,0 - 6,0 11 1 1,5 0,27 0,385 2,0 - 6,0 12 0,5 2 0,155 0,54 2,0 - 6,0 13 1 1,5 0,324 0,466 2,0 - 6,0 14 0,5 1,5 0,182 0,506 2,0 - 6,0 15 1 1,5 0,378 0,547 2,0 - 6,0 16 0,5 2,5 0,209 0,912 2,0 - 6,0 17 1 1,5 0,432 0,628 2,0 - 6,0 18 0,7 1,5 0,327 0,668 2,0 - 6,0 19 1 1,5 0,486 0,709 2,0 - 6,0 20 0,5 2 0,263 0,972 2,0 - 6,0 21 1 2,5 0,54 1,249 2,0 - 6,0 22 0,75 1,5 0,43 0,831 2,0 - 6,0 23 1 5,594 2,0 - 6,0 24 0,5 1,5 0,317 0,912 2,0 - 6,0 25 0,75 3 0,491 1,783 2,0 - 6,0 25,4 1,22 0,797 2,0 - 6,0 26 1 1,5 0,675 0,993 2,0 - 6,0 27 0,5 0,358 2,0 - 6,0 28 0,75 1,5 0,552 1,074 2,0 - 6,0 30 0,75 3,5 0,593 2,505 2,0 - 6,0 31 2,75 5 2,098 3,511 2,0 - 6,0 32 0,75 2 0,633 1,621 2,0 - 6,0 34 0,5 2 0,452 1,729 2,0 - 6,0 35 1 2,5 0,918 2,195 2,0 - 6,0 38 0,75 1,5 0,755 1,479 2,0 - 6,0 40 1 4 1,053 3,889 2,0 - 6,0 43 0,75 0,856 2,0 - 6,0 45 0,8 2 0,955 2,323 2,0 - 6,0 50 0,5 5 0,668 6,077 2,0 - 6,0 50,8 1,625 2,158 2,0 - 6,0 55 1 1,5 1,459 2,168 2,0 - 6,0 57 1 1,513 2,0 - 6,0 60 0,8 2 1,279 3,133 2,0 - 6,0 64 2,5 4,153 2,0 - 6,0 65 0,8 2,85 1,387 4,784 2,0 - 6,0 70 1,5 2 2,775 3,673 2,0 - 6,0 75 1,5 2,978 2,0 - 6,0 76,2 1,625 3,273 2,0 - 6,0 80 1,5 3 3,18 6,239 2,0 - 6,0 85 2 4,484 2,0 - 6,0 90 2,5 5,908 2,0 - 6,0 100 3 7,86 2,0 - 6,0
-
