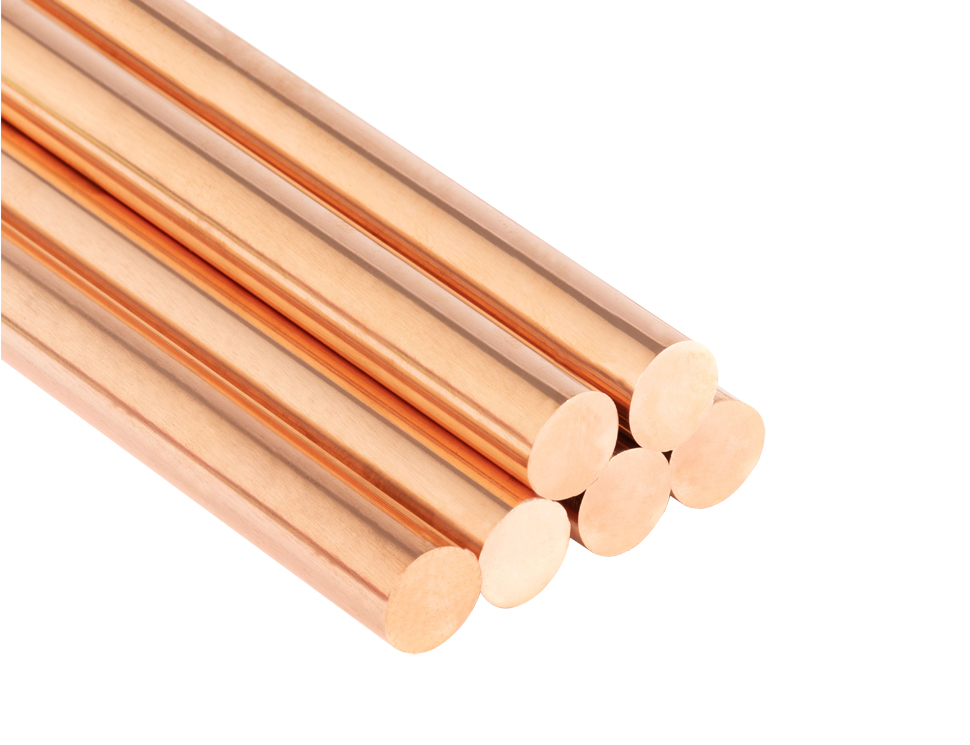

Copper Round Bar

Production

TECHNICAL SPECIFICATIONS:
Material: Cu-a1 / Cu-ETP
Chemical Compound: Min. %99,90
Standards: TS435, EN13601

PRODUCTION:
Manufactured in any length ranging from 4 mm to 300 mm in diameter pursuant to the standards applicable for TS435, EN13601.

AREAS OF APPLICATION:
Used for automation, grounding bar, moulding industry and erosion processes.

DIMENSIONS OF COPPER ROUND BAR
Size (mm)	Weight (Kg/m)	Size (mm)	Weight (Kg/m)	Size (mm)	Weight (Kg/m)
4	0,112	30	6,291	80	44,736
5	0,175	32	7,158	90	56,619
6	0,252	34	8,080	95	63,085
7	0,343	35	8,563	100	69,900
8	0,447	36	9,059	110	84,579
9	0,566	38	10,094	120	100,656
10	0,699	40	11,184	130	118,131
12	1,007	42	12,330	140	137,004
14	1,370	44	13,533	150	157,275
15	1,573	45	14,155	160	178,944
16	1,789	48	16,105	165	190,303
18	2,265	50	17,475	170	202,011
20	2,796	55	21,145	175	214,069
22	3,383	60	25,164	190	252,339
24	4,026	65	29,533	200	279,600
25	4,369	70	34,251	230	369,771
28	5,480	75	39,319	300	629,100

Please contact our company for your requests for non-standard sizes and special manufactures.
